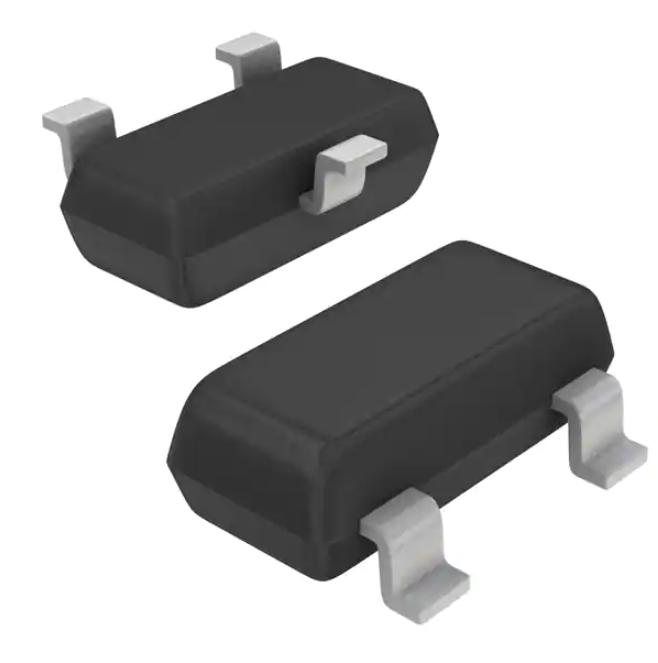

2N7002ET1G ON/安森美 SOT-23-3TO-236

产品详情

制造商	onsemi
制造商产品编号	2N7002ET1G
描述	MOSFET N-CH 60V 260MA SOT23-3
原厂标准交货期	39 Weeks
详细描述	N-Channel 60 V 260mA (Ta) 300mW (Tj) Surface Mount SOT-23-3 (TO-236)

类别	Discrete Semiconductor Products Transistors - FETs, MOSFETs - Single
Mfr	onsemi
Series	-
Package	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	260mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.5Ohm @ 240mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.81 nC @ 5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	26.7 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300mW (Tj)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
Base Product Number	2N7002
