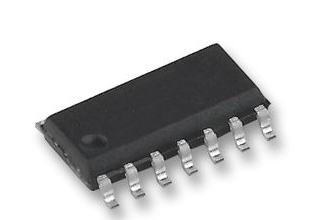

LM324DR TI/德州仪器 SOIC-14150mil
产品详情
LM324DR TI/德州仪器 运算放大器, 4个放大器, 1.2 MHz, 0.5 V/µs,
3V 至 32V, ± 1.5V 至 ± 16V, SOIC, 14 引脚
产品概述
The LM324DR is a 4 independent high-gain frequency-compensated Operational Amplifier designed specifically to operate from a single supply or split supply over a wide range of voltages.
- Internal frequency compensation
- Common-mode input voltage range includes ground, allowing direct sensing near ground
- Low input bias and offset parameters
- 2kV ESD Protection
- 0.8mA Typical low supply-current drain independent of supply voltage
- 3mV Typical input offset voltage
- 2nA Typical input offset current
- 20nA Typical input bias current
- 32V Differential input voltage range equal to maximum-rated supply voltage
- 100V/mV Typical open-loop differential voltage amplification
- Green product and no Sb/Br
应用
消费电子产品, 传感与仪器, 电机驱动与控制, 测试与测量
